Safety Test Switch

How To ...

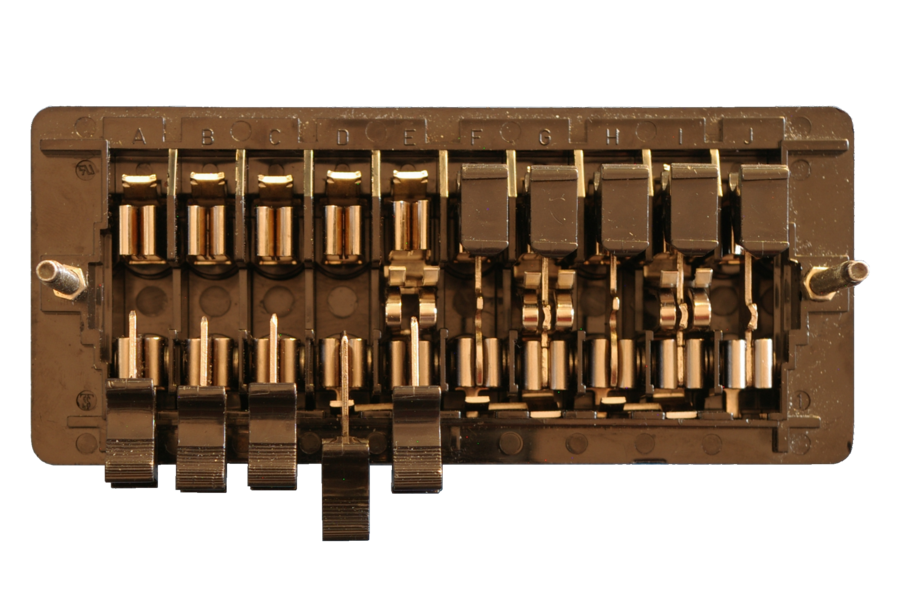

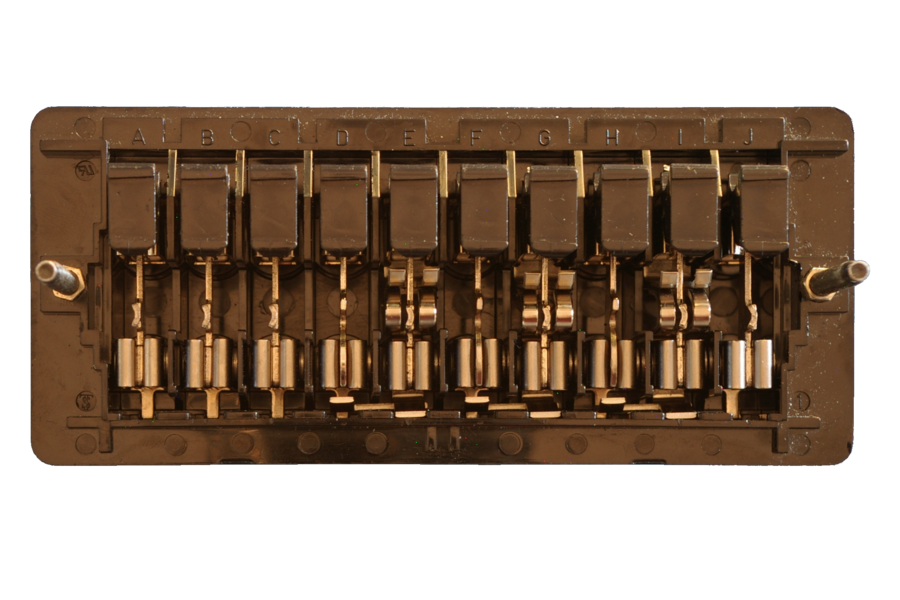

... use the Safety test switch vs the FT Switch

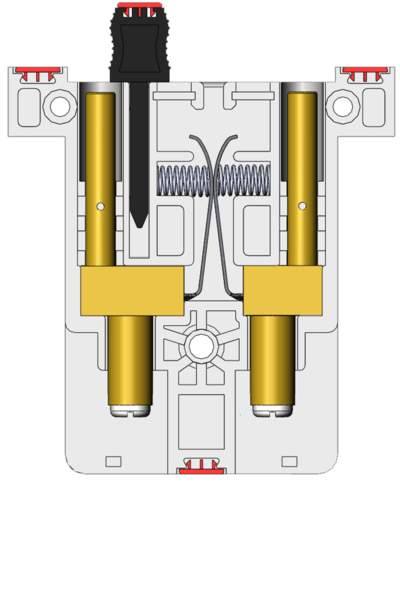

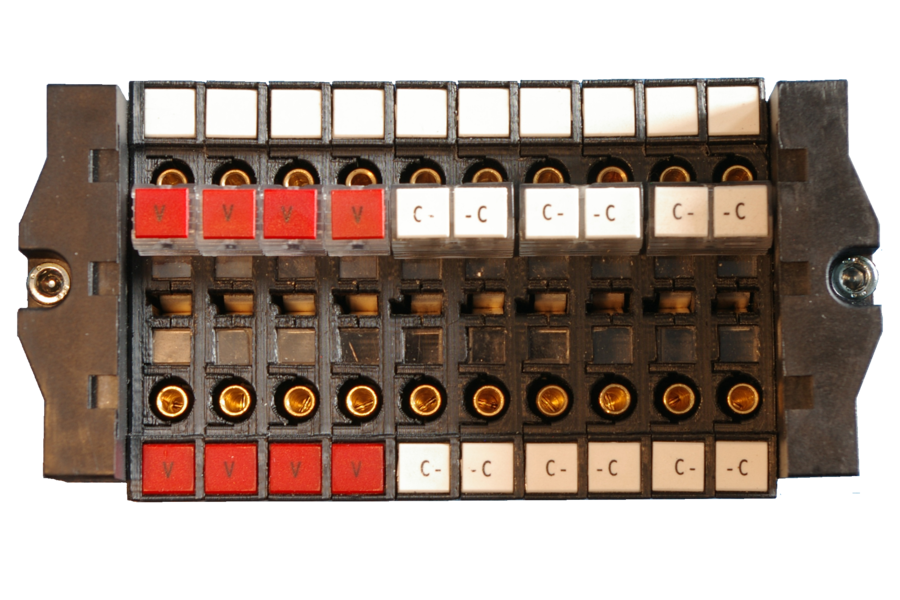

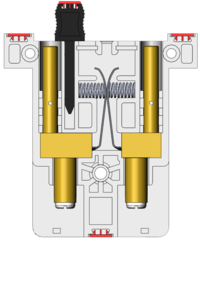

STEP 1: CLOSED

Normal State, all contacts closed, disconnect pins in storage (top) position - pins are safe to remove!

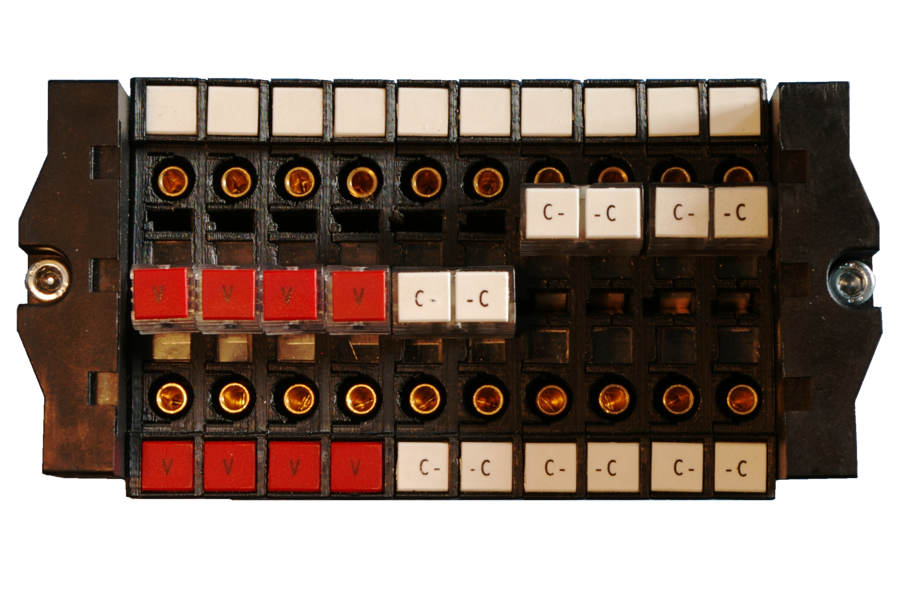

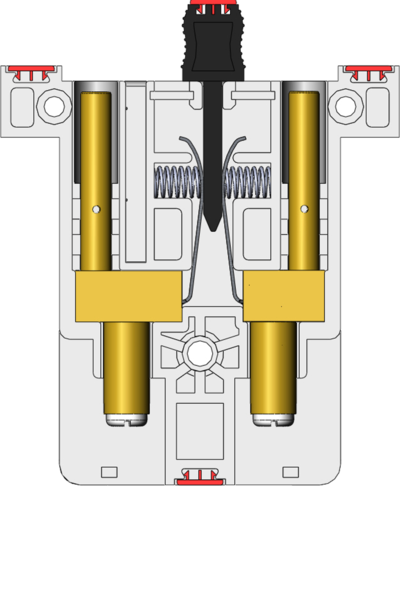

STEP 2: OPEN

Disconnect pins partially in contact (bottom) position to open contact. CT shorting integrated in pin.

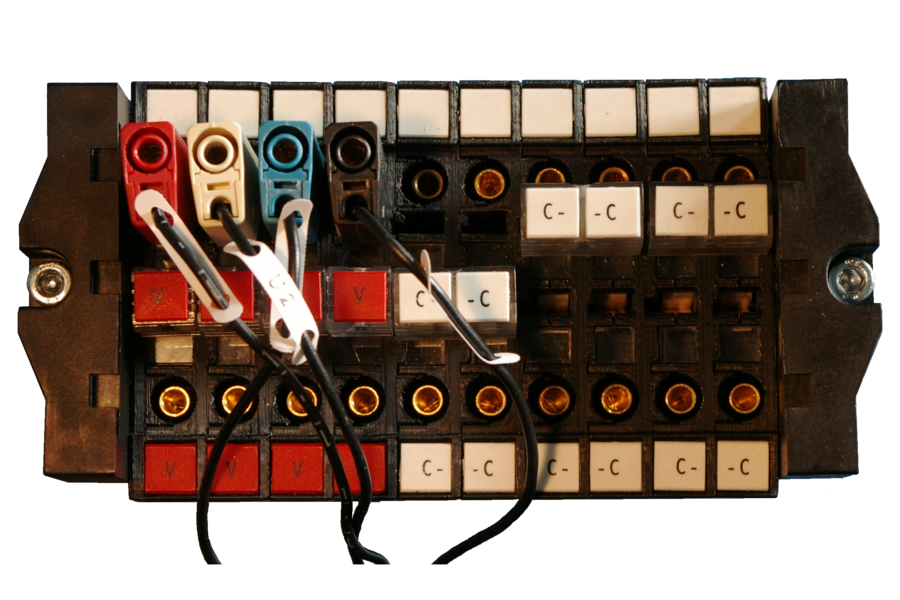

STEP 3: TEST

Integrated banana jacks for connecting test set. No additional tool/plug needed. Test plug optionally available.

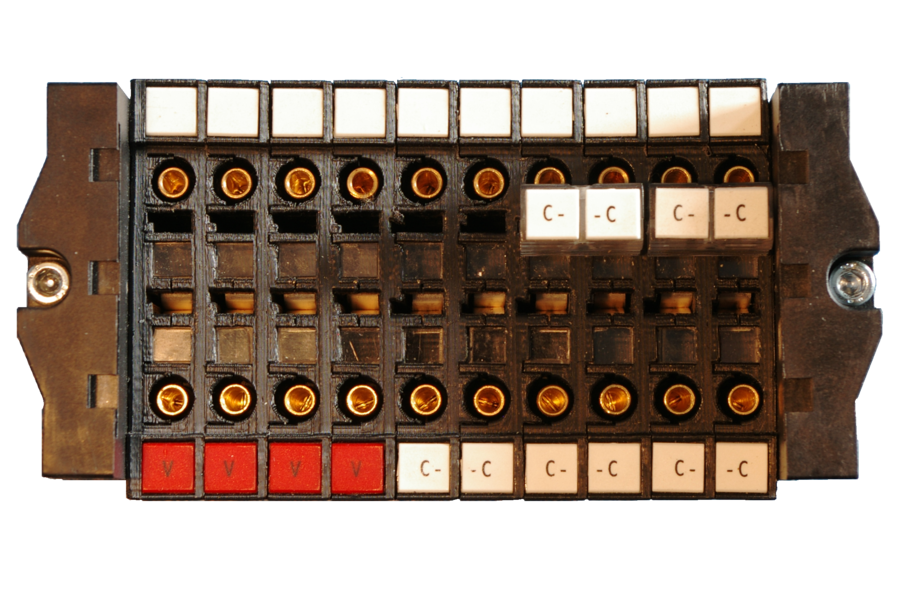

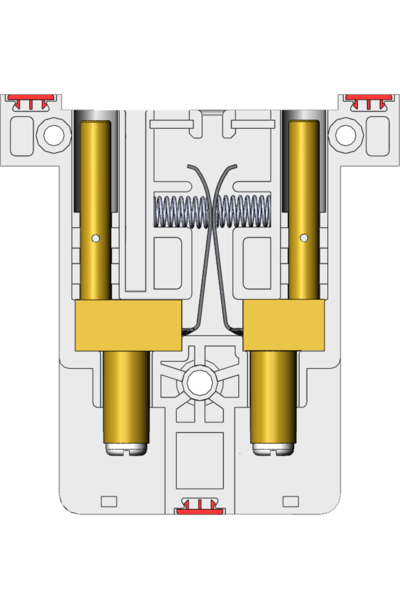

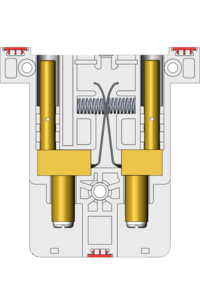

STEP 4: RECLOSED

Contacts reclose automatically upon disconnect pin extraction. Contacts are safely closed once pin is fully extracted, storage (top) position is only for keeping pin with the switch (recommended).
